CASING SPIDER & INSERT BOWL
- PRODUCT DETAIL
The

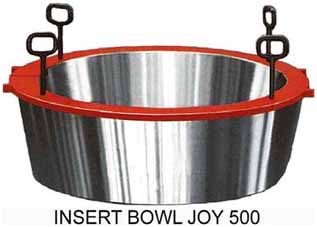

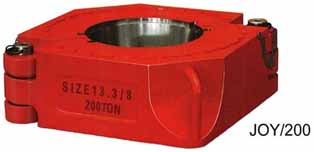

Hinged Casing Spider has a hinged spider body with a split insert bowl. It is
put above a rotary table and is suitable for most casings of different sizes.
They are designed and manufactured according to API SPEC 7K Specification for
drilling and well servicing equipment.
Main Technical Parameters
|
Model |
Applicable Tubular Dia. in |
Taper |
Rated Capacity (short tons) |
|
JOY13-3/8/200 |
7~8-5/8 |
1:03 |
200 |
|
9~13-3/8 |
1:04 |
||
|
JOY20/200 |
7~8-5/8 |
1:03 |
|
|
9~20 |
1:04 |
||
|
JOY30/200 |
16~30 |
1:04 |
|
|
JOY36/200 |
18-5/8~36 |
1:04 |
|
|
JOY30/500 |
16~30 |
1:03 |
500 |
|
JOY36/500 |
18-5/8~36 |
1:03 |
|
|
HCS20/500 |
2-3/8~20 |
1:03 |
