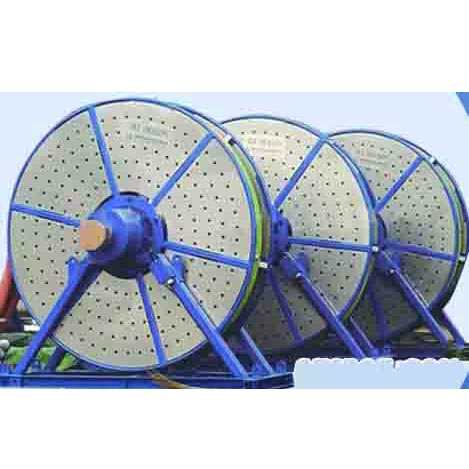

EZY Hose Reel for offshore rigs

Category:
Views: 2355

  • PRODUCT DETAIL

Hose Reel System introduction

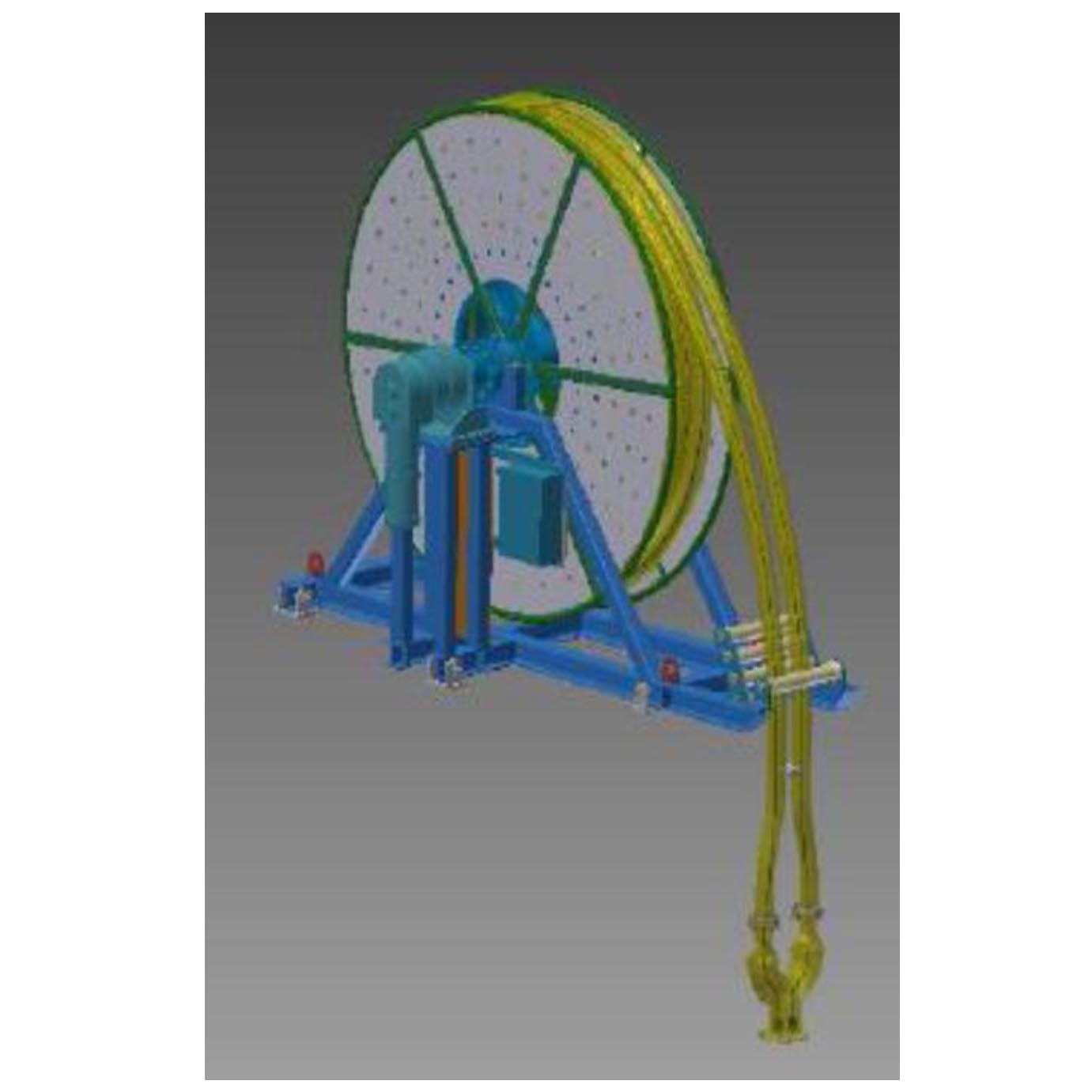

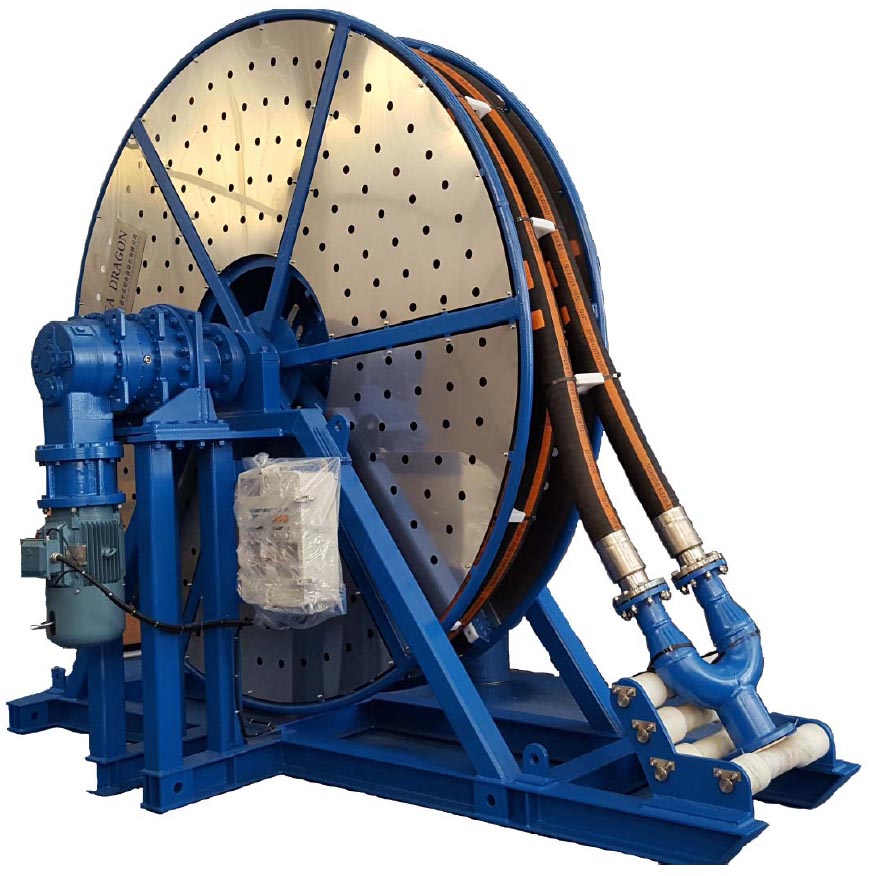

The Hose Reel System is a seawater delivery tool designed to eliminate the hazards and inefficiencies associated with current delivery systems. This system utilizes technologies to minimize weight and space consumption. Seawater is delivered to offshore elevated structures through a unique compact flexible hose deployed from a streamlined reeling system. A submersible pump is connected to the feeding end of the hose, lowered into the water by the delivery reel. The hose is a specially designed to support electrical cable. A cover designed to withstand harsh conditions, abrasions and heat, protects the hose bundle. The Hose Reel System is easily operated and mounted on the side of the deck or existing tower entry for easy installation and maintenance.


Model No. SD400-40 SD450-45 SD550-55-S SD1000-55 SD550-55-D
Pump Flow (m3/h) 400 450 550 1000 550
Overall Dimensions (WxLxH mm) 3272 x 5378 x 4445 3436 x 5088 x 4555 3480 X 5590 X 5050 3976 x 6150 x 5715 3480 x 5590 x 5050
Max. Working Height (m) 40 45 55 55 55
Dry Weight (with hose) (kgs) 9200 9500 11000 15000 11000
Up/Down Speed (Approx. rpm) 1 1 1 1 1
Reel Reinforced drum holds a single row of dual hose, fixed on the main deck by lock pins local on the reel bottom.
Seawater Hose (Dual) (ID - in/mm, Length) 5/127, 40 5/127, 45 6/152.4, 45 7.5/191, 55 6/152.4, 45
Motor 1EA 11kW / 415V / 3ph /50Hz, ABB Electric Motor 1EA 3kW Pneumatic Motor 1EA 18.5kW / 380V / 3ph / 50Hz, ABB Electric Motor 1EA 22kW / 415V / 3ph / 50Hz, ABB Electric Motor 1EA 18.5kW / 380V / 3ph / 50Hz, ABB Electric Motor
Gear Box: One planetary gear drive
speed ratio 1:1000 1:1000 1:1000 1:1000 1:1000
Max Torque (nm.) 83000 83000 160000 202000 160000
Reel Controller Local Control cabinet Pneumatic Control Local Control Cabinet Local Control Cabinet Local Control Cabinet
Certificate ABS Certificate for Reel ABS Certificate for Reel ABS Certificate for Reel ABS Certificate for Reel ABS Certificate for Reel
Note: Single Reel on one Skid Single Reel on one Skid Single Reel on one Skid Single Reel on one Skid Double Reels on one Skid
