KFDJ Diverters
- PRODUCT DETAIL
DIVERTER SYSTEMS
Yantai Enerserva Machinery Co., Ltd. is appointed as Sales Representative of AVERT-TEK LLC for the Pacific Rim Market since January 3rd, 2024. AVERT-TEK manufacturers KFDJ & DSP Diverter systems for offshore Jackup / Platform Rigs. With the support of AVERT-TEK as OEM of Diverter Systems, we strive to deliver newest technology for our customers, with best-in-class service and pricing. The patented diverter technology provides redundant / backup sealing technology patented globally to meet customers present and future requirements.
United States Patent 10,557,423 B2 / Singapore Patent 112018000831V / European Union Patent 3332081

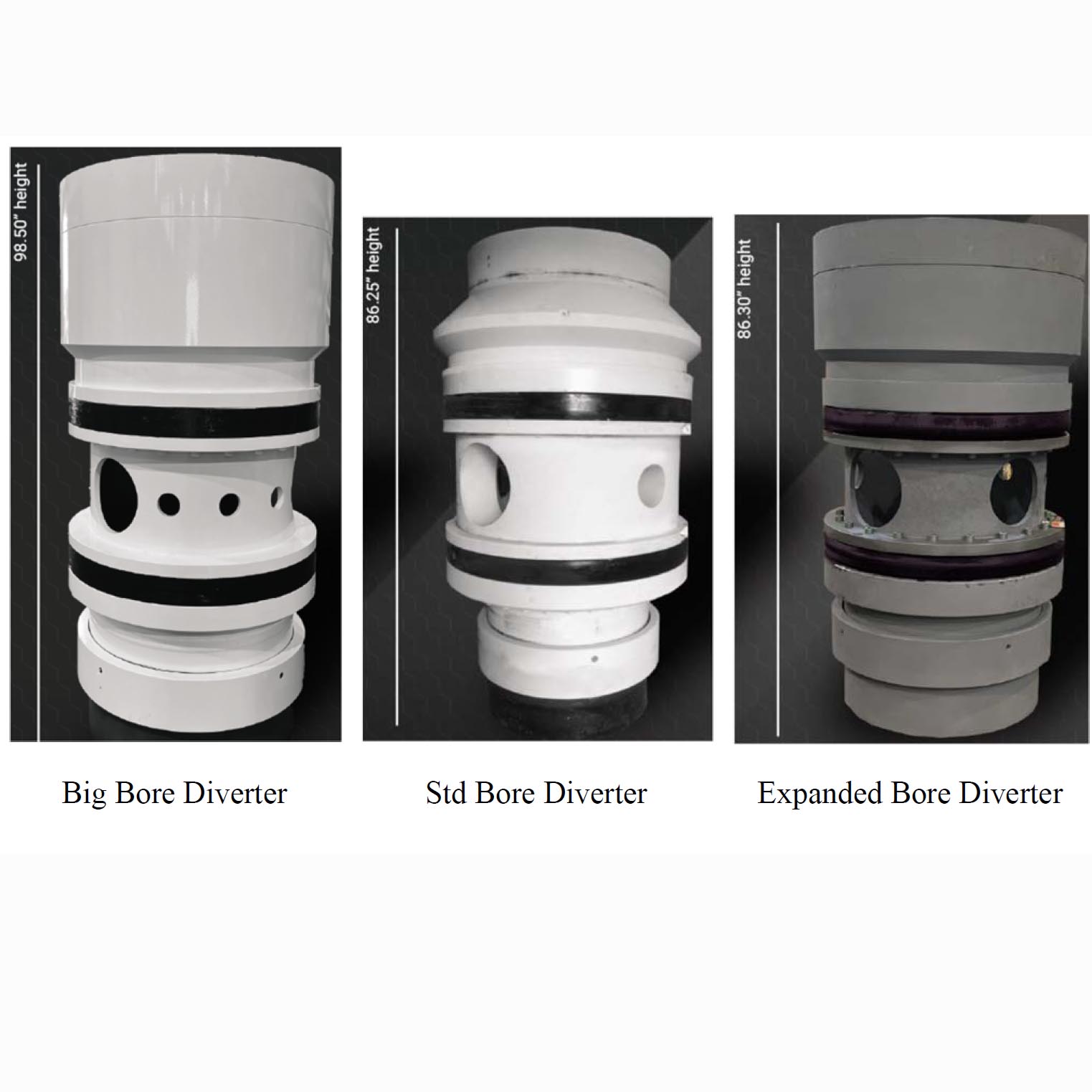

KFDJ-500 DIVERTER
KFDJ-1000 DIVERTER
KFDJ-2000 DIVERTER

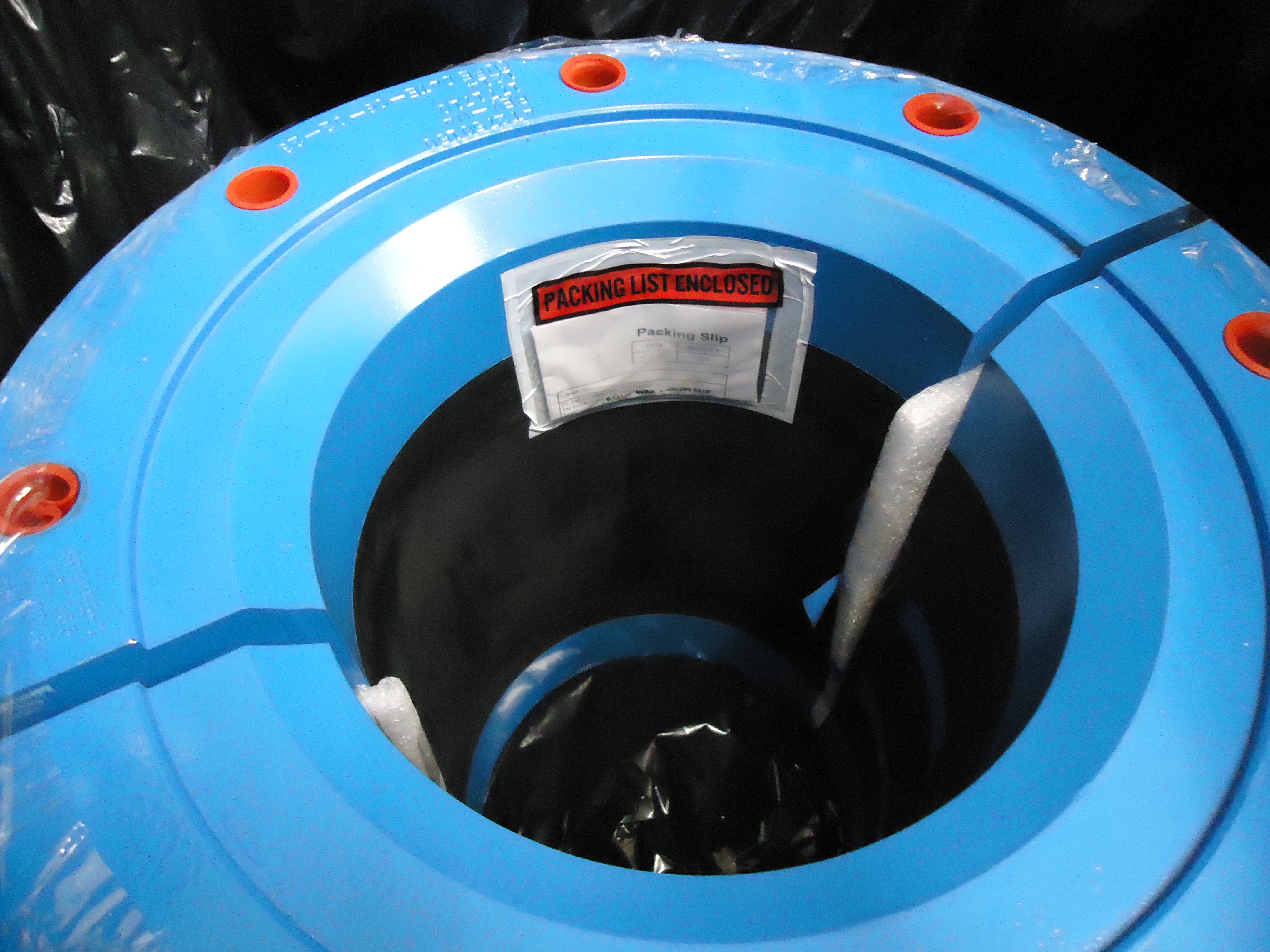

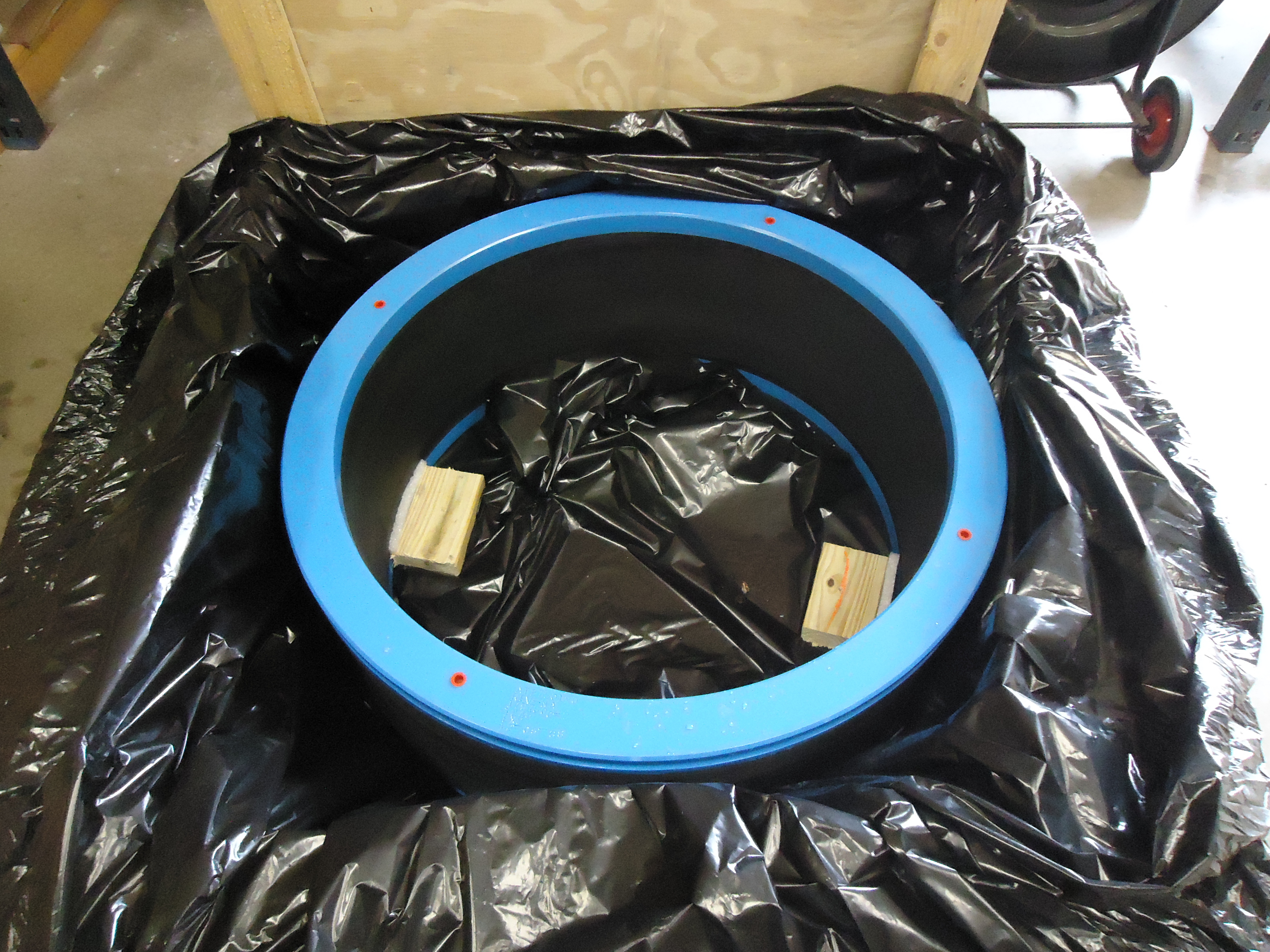

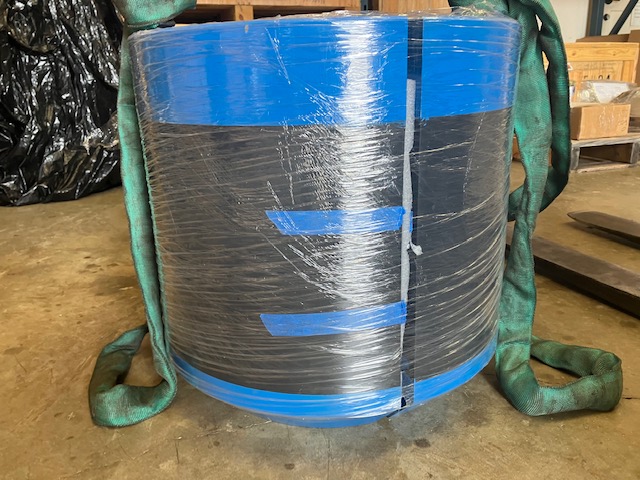

INSERT PACKERS:
VETCO P/N ---- 723675, 723677, 722995, 722998
| ITEM | Descriptions | VETCO GRAY P/N |
| 1 | INSERT PACKER | 722995 |
| 2 | INSERT PACKER | 722998 |
| 3 | INSERT PACKER | 723675 |
| 4 | INSERT PACKER | 723677 |
| 5 | J-RING, SPLIT | 723670 |
| 6 | BOWL | 805535 |
| 7 | ELEMENT (50 MICRON) | 805536 |
| 8 | SEAL KIT | 805537 |
| 9 | BOWL | 805538 |
| 10 | ELEMENT (50 MICRON) | 805539 |
| 11 | SEAL KIT | 805540 |
| 12 | AIR VALVE,1/2",4 WAY,3POS,LEVER | 807054 |
| 13 | OVERSHOT PACKER | 02117001 |
| 14 | OVERSHOT PACKER | 02206101 |
| 15 | O-RING | 02206201 |
| 16 | OVERSHOT PACKER | 02373901 |
| 17 | O-RING | 02381001 |
| 18 | GLAND, PISTON, 3.614OD x 2.008ID x 1.25LG | 2909501 |
| 19 | HOUSING, LOCKING CYLINDER | 3060801 |
| 20 | OVERSHOT PACKER | 04354601 |
| 21 | O-RING, OUTER PACKER, 32.250 ID X 0.500CS, NEOPRENE 80 DURO, VETCO KFDJ500 DIVERTER | 04584801 |
| 22 | OVERSHOT PACKER | 05748701 |
| 23 | INSERT PACKER | 92359701 |
| 24 | SCREW | 6503058800 |
| 25 | RING-RETAINING,INTERNAL,3.625 BORE DIA | 6700000300 |
| 26 | DIVERTER OVERSHOT PACKER KFDJ 31” OD 24.5: ID X 12.5 LG | 02206101-C-R1 |
| 27 | PISTON, LKG CYLINDER, 3.50 X 7.56 LG | 02909401 / H11429-1 |
| 28 | GLAND, PISTON, LOCKING CYLINDER, 3.614OD x 2.008ID x 1.25LG, HYDRAULIC CYLINDER, VETCO KFDJ500 DIVERTER | 02909501 / 2909501 |
| 29 | BLEEDER VALVE | 0902-0109 |
| 30 | AIR CONTROL VALVES | 1250-0199 |
| 31 | O-RING, AS568A-214, 0.984 ID, 0.139CS, NITRILE, 70 DURO, VETCO KFDJ500 DIVERTER | 195000-214 |
| 32 | O-RING, AS568A-229, 2.359 | 195000-229 |
| 33 | O-RING, AS568A-329, 1.975 (NOM 2) ID | 195000-329 |
| 34 | O-RING, AS568A-334, 2.600 (NOM 2-5/8) ID | 195000-334 |
| 35 | O-RING, SEALING 0.21 IN THICKNESS 3-1/2 IN OUTSIDE DIA | 195000-338 |
| 36 | O-RING, AS568A-427, 4.725 (NOM 4-3/4) ID | 195000-427 |
| 37 | PIN,SPRING, .500 DIA X 1.5 | 195057-426 |
| 38 | O-RING BACKUP,MOULDED, #329 | 195327-229 |
| 39 | O-RING BACKUP, MOULDED, 334, 2 .643 ID, 0 | 195327-234 |
| 40 | O-RING BACKUP,MOULDED, 338, 3.143 ID, 0. | 195327-238 |
| 41 | O-RING,SPECIAL,25.06 OD X .275 CS,NITRIL | 200008-92 |
| 42 | OVERSHOT PACKER, 30.985OD X 24.515 ID X 12.5 HT, NITRILE 70 DUROMETER, MEETS NACE MR-01-75 FOR SOUR GAS SERVICE. | 2206101 / 02206101 |
| 43 | FILTER, AIR, 1/4" METAL BOWL, MANUAL DRAIN | 2620-0100 |
| 44 | ELEMENT (50 MICRON) | 2620-0101 |
| 45 | BOWL | 2620-0102 |
| 46 | SEAL KIT | 2620-0197 |
| 47 | FILTER, AIR, 1/2" METAL BOWL WITH SIGHT GLASS, AUTO DRAIN | 2620-3300 |
| 48 | FILTER, AIR, 1" METAL BOWL WITH SIGH GALSS, AUTO DRAIN | 2620-3600 |
| 49 | REPAIR KIT | 3003-1199 |
| 50 | KIT 3012-2199 | 3012-2199 |
| 51 | FLUID END | 3033-0100 |
| 52 | O-RING, SPECIAL, FOR OVERSHOT PACKERS, VETCO KFDJ500 DIVERTER | 724373-CR1 |
| 53 | INSERT, SPLIT, NOM. 28.000 OD X 22.020 ID X 18.000LG | 92359901-CR1 |
| 54 | INSERT PACKER | A20955-1 |
| 55 | OVERSHOT SPOOL | H10322 |
| 56 | J-RING, SPLIT, RETAINER, NOM. 28.000" | H10973-1 |
| 57 | INSERT PACKER | H11226-1 |
| 58 | ASSEMBLY, LOCKING CYLINDER, 3000 PSI PARTS INCOME RATED | H11430-2 |
| 59 | INSERT PACKER | H11925-1DW1 |
| 60 | RETAINER PLATE | H123424-1 CR1 |
| 61 | FLOWLINE SEAL | H132990 |
| 62 | FLOWLINE SEAL, 46.75 OD, KFDS/KFDJ 49-1/2 ROTARY TABLE, STANDARD BORE HYDRIL COMPOUND CP1184A | H132990-CR |
| 63 |
DIVERTER
PART, FLOWLINE SEAL, 46.75 OD, KFDS/KFDJ 49-1/2 ROTARY TABLE, STANDARD BORE HYDRIL COMPOUND CP1184A |
H132990-C-R1 |
| 64 | INSERT PACKER | H139278-1 |
| 65 | OVERSHOT PACKER | H139278-1 |
| 66 | OUTER / LINER PACKER | H139278-13 |
| 67 | PACKER, NOM 30", 30.5" ID, OVERSHOT PACKER, VETCO KFDJ500 DIVERTER | H139278-1CR1 |
| 68 | DIVERTER PACKER, NOM. 28", 33.235" OD X 28.525" ID X 12.5" HEIGHT, VETCO KFDJ500 DIVERTER | H176822-1 |
| 69 | CAP SCREW, SOCKET HD, (1960) 1.00-8UNRC-2A X 4.50LG | H300076-506 |
| 70 | CAP SCREW, SOCKET HEAD (1960 SERIES), 0.625-11UNRC-2A X 1.375LG | H301272-56CR1 |
