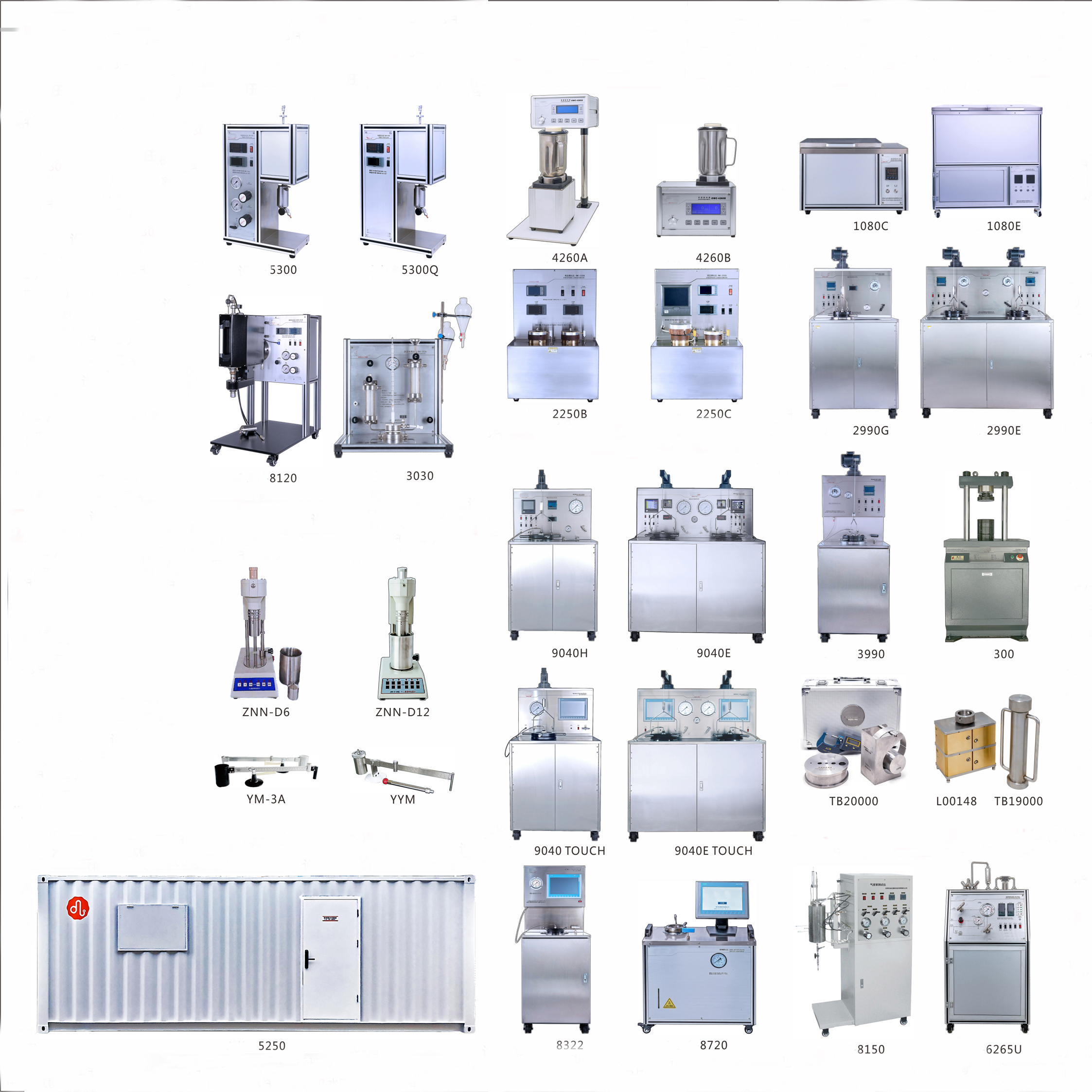

Cement Slurry Preparations ----   Design and Fabrication Standards API Spec 10, GB/T10238

Constant Speed Mixer / Blender

The Constant Speed Mixer / Blender prepares oilwell cement slurry and fracturing fluid samples according to API specifications. The mixing speed can be preset to 4000 rpm and 12000 rpm according to the specifications. Custom mixing speeds and timings from 300 rpm to 18000 rpm can also be created. It meets the needs of slurry preparation for test samples such as cement slurry and admixtures.

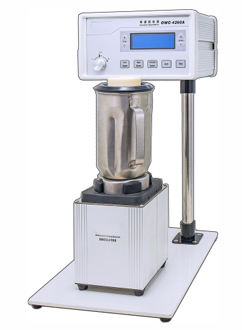

4260A Constant Speed Mixer / Blender (Standard Model) 1L/1qt, Speed: 4000rpm, 12000rpm, 300-18000rpm

4260B Constant speed Mixer / Blender (Integrated Model) 1L/1qt, Speed: 4000rpm, 12000rpm, 300-18000rpm

4260A	4260B

Atmospheric Pressure Consistometer

The determination of cement slurry and its rheological properties, the detection of free water content and the evaluation of API fluid loss tests all require the use of an atmospheric pressure consistometer to pretreat the cement slurry.

2250B Atmospheric Pressure Consistometer (Standard Model) Atmospheric pressure, 93℃/200℉, 150rpm, Direct Reading Viscometer

2250C Atmospheric Pressure Consistometer (Recording Model) Atmospheric pressure, 93℃/200℉, 150rpm, potentiometer

2250B	2250C

Consistency Test ---- Design and Fabrication standards: API Spec 10, GB/T 10238

Pressurized Consistometer (HTHP)

Specially used to simulate the downhole temperature and pressure environment and measure the thickening time of oilwell cement. All models provide host computer data acquisition and control system, automatic temperature and pressure control, and single and double chambers are available. Variable speed, high and low temperature pressurized consistometers can also be customized according to user needs.

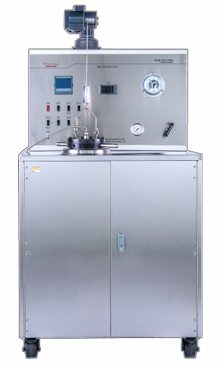

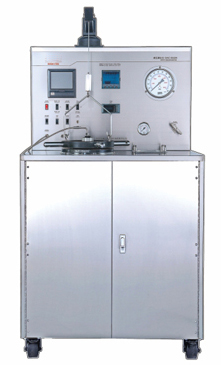

9040H Pressurized Consistometer, Single Chamber (Standard Model), 207Mpa/30000psi, 260℃/500℉, 150rpm, EURO Controller

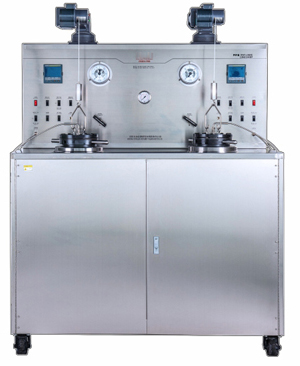

9040E Pressurized Consistometer, Double Chamber (Standard Model), 207Mpa/30000psi, 260℃/500℉, 150rpm, EURO Controller

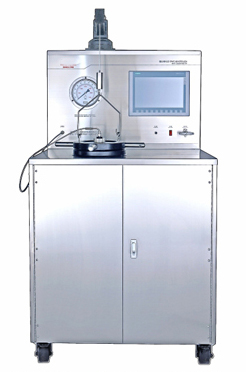

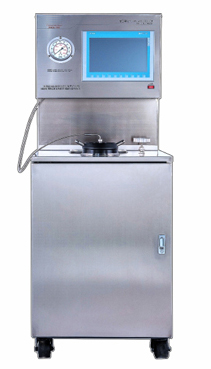

9040 TOUCH Pressurized Consistometer, Single Chamber (Touchscreen Model), 207Mpa/30000psi, 260℃/500℉, 150rpm, Siemens PLC Industrial Controller

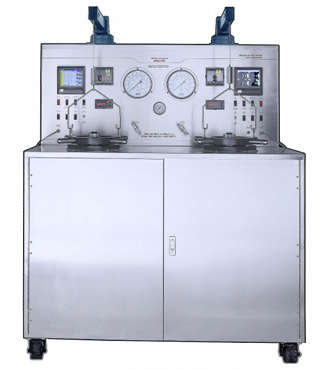

9040E TOUCH Pressurized Consistometer, Double Chamber (Touchscreen Model), 207Mpa/30000psi, 260℃/500℉, 150rpm, Siemens PLC Industrial Controller

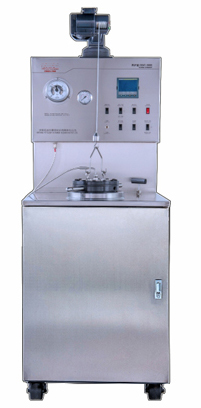

8322 Pressurized Consistometer, Single Chamber (Touchscreen Model), 151Mpa/22000psi, 204℃/400℉, 150rpm, Siemens PLC Industrial Controller

9340 Pressurized Consistometer, Single Chamber (Containerized Model), 207Mpa/30000psi, 260℃/500℉, 150rpm, EURO Controller

9340E Pressurized Consistometer, Double Chamber (Containerized Model), 207Mpa/30000psi, 260℃/500℉, 150rpm, EURO Controller

9040H	9040E
9040 TOUCH	9040E TOUCH
8322	8720

Portable Consistometer (HTHP)

The Portable Consistometer is lightweight and easy to transport and move. It can be used to test the thickening time of cement slurry in the laboratory or at the cementing site.

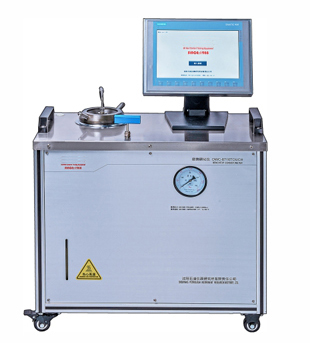

8720 TOUCH Portable Consistometer (Touchscreen Model), 151Mpa/22000psi, 204℃/400℉, 150rpm, Siemens PLC Industrial Controller

Atmospheric Pressure Consistometer

Atmospheric Pressure Consistometer is used for cement slurry thickening test under basic atmospheric pressure environment.

2250B Atmospheric Pressure Consistometer (Standard Model), atmospheric pressure, 93℃/200℉, 150rpm, Direct Reading Viscometer

2250C Atmospheric Pressure Consistometer (Recording Model), atmospheric pressure, 93℃/ 200℉, 150rpm, Potentiometer

Cement Curing and Compressive Strength Test	Standard: API Spec 10, GB/T 10238
	Standards: GB/T17671 (Pressure Testing Machine)

Atmospheric Pressure Curing Box

The Atmospheric Pressure Curing Box is used to cure cement slurry in a constant temperature water bath under basic atmospheric pressure to form 2-inch or 50mm cubic cement specimens.

1080C Atmospheric Pressure Curing Box (Single Tank), atmospheric pressure, 93℃ / 200℉, Dual Cement Strength Test Mold, 16EA Sample Blocks
1080E Atmospheric Pressure Curing Box (Double Tank), atmospheric pressure, 93℃ / 200℉, Dual Cement Strength Test Mold, 24+24EA Sample Blocks, dual temperatures and dual controller, water bath circulation

1080C	1080E

Curing Chamber (HTHP)

The Curing Chamber is used to simulate the downhole temperature and pressure environmental conditions to cure the cement slurry into 2inch or 50mm cubic cement specimens.

3990G Curing Chamber (Single Chamber), Standard Model, 41Mpa / 6000psi, 370℃ / 700℉, quadruple cement strength test mold, 8EA specimens

2990G Curing Chamber (Single Chamber), Standard Model, 41Mpa / 6000psi, 370℃ / 700℉, quadruple cement strength test mold, 8EA specimens. Custom design of Single Chamber with 16EA samples is also available.

2990E Curing Chamber (Double Chamber), standard model, 41Mpa / 6000psi, 370℃ / 700℉, quadruple cement strength test mold, 8+8EA sample blocks

Pressure Testing Machine

3990G	2990G

2990E

The Pressure Testing Machine is used to destructively determine the compressive strength of 2inch or 50mm cubic cement specimens.

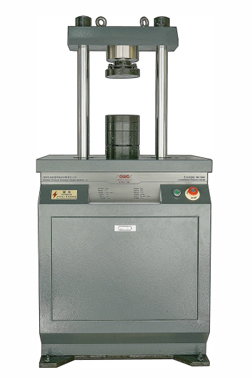

300 Pressure Testing Machine, servo motor driven, ball screw, maximum load 300Kn/67500lbf

300

Curing Molds ---- Standard: GB/T10238 (Cement cube sample), IS010426-5; GB/T33293 (Expansion)

L00148 Cement strength test mold (copper test mold), Double, 4 specimens; for curing box

800100/4 Cement strength test mold (copper test mold), Double, 8 specimens; for curing chamber

800100/8 Cement strength test mold (copper test mold), Octuple, 16 specimens; for curing kettle

L00148

Expansion  ---- Used to determine the linear shrinkage or expansion properties of cement systems

TB20000 Ring Type expansion mold 63ml/φ98.4XH32

Settlement  Used to determine the sedimentation stability of cement slurry

TB19000 Cement Settlement Test Mold φ30XH200

TB20000	TB19000

Static Gel Test, Gas-Liquid-Flow Analysis	Standard: GB/T39421 (Static Gel Strength Tester)
	Standards: API Spec 10, GB/T19139

Cement Slurry Static Gel Strength

By calculating the penetration time and waveform change of ultrasonic waves, the development trend of compressive strength and the transition time of cement slurry gel strength are continuously measured and analyzed.

6265U Ultrasonic Static Gel Strength Tester, 10000psi / 69Mpa; 204℃ / 400℉

6265U

Gas-Liquid-Flow Analyzer (FMA)

The Gas-Liquid-Flow Analyzer is a set of precision instruments designed to determine the sensitivity of different cement formulations to gas-liquid-flow issues.

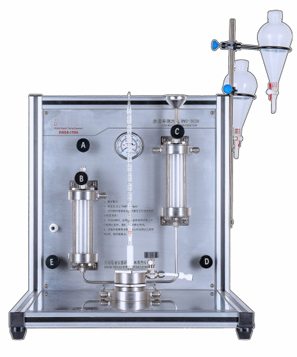

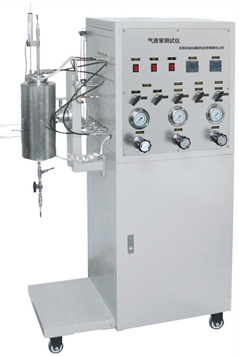

8150 Gas-Liquid-Flow Analyzer (FMA), 1200psi / 8Mpa; 204℃ / 400℉

8150

Filtration Test, Cement Penetration ---- Standard: API Spec 10, GB/T19139

HPHT Filter Press (static)

The HPHT static Filter Press can measure the filtration performance of mud and cement slurry. It provides a reliable means to determine the filtration characteristics of oil well cement.

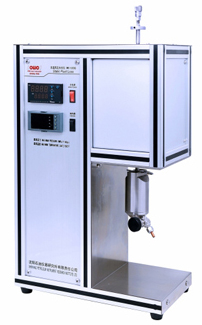

5300 HPHT Filter Press, Control Panel with Pressure Regulation Valve to control pressure, 1200psi/8Mpa; 260℃/500℉

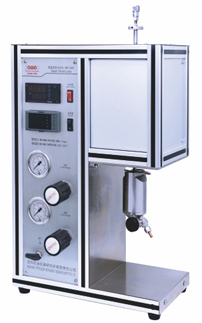

5300Q HPHT Filter Press, pressure control by gas manifold at Nitrogen cylinder end, 1200psi / 8Mpa; 260℃ / 500℉

5300	5300Q

HPHT Filter Press (dynamic)

This equipment is different from the static Filter Press. The cement slurry is adjusted by stirring at a speed of 150rpm. Then the chamber is inverted and the filtration test begins. The measuring cylinder and back pressure receiver are used to collect the filtrate to measure the fluid loss characteristics of the slurry.

8120 Stirring Filter Press, Pressure Reducing Valve to control pressure, 1200psi/8Mpa; 260℃/500℉

8120

Cement Permeameter

Cement Permeameter is used to measure the relative permeability of liquid to cement samples. The test results are used to improve the design of cement slurry composition.

3030 Cement Permeameter, Helium source≥200psi; Max. 400psi

3030

Viscosity / rheology, density  ---- Standard: API Spec 10, GB/T 19139

Viscosity

The viscometer is a coaxial cylinder rotational viscometer that contains the test fluid in the annular space (shear gap) formed between the outer sleeve and the float.

ZNN-D6 Six-Speed Rotational Viscometer, measurement accuracy: 1-25mPa.s (Newtonian fluid); 3, 6, 100, 200, 300, 600rpm

ZNN-D12 Twelve-Speed Rotation Viscometer, measurement accuracy: 1-25mPa.s (Newtonian fluid); 1, 2, 3, 6, 10, 20, 30, 60, 100, 200, 300, 600rpm

ZNN-D6	ZNN-D12

Mud Balance / Density Scale

The Mud Balance / Density Scale is a special instrument used to measure the density of drilling fluid and other liquid substances.

YM-3A Mud Balance, Stainless steel cup, cup volume: 140cm3, Range: 0.96-3.0g/cm3.

YYM Pressurized Density Scale, pressurize the test liquid to expel the gas inside the liquid. Cup volume: 210cm3, Range: 0.96-3.1g/cm3.

YM-3A	YYM

Mobile Cementing Laboratory

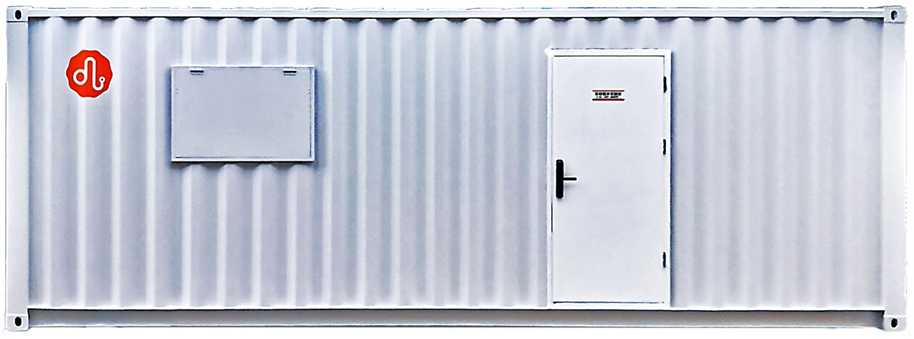

The mobile cementing laboratory uses a standard container (20 feet or 40 feet) as the basic structure, and to install the lab equipments according to customers’ requirements to meet the needs of users to carry out oilwell cement testing in the areas where the standard laboratory conditions are not available.

5250 (20 feet or 40 feet) Mobile Cementing Laboratory

Custom design on lab equipment layout and decoration solutions in the container according to the customers’ specific requirements.

5250
