Weldless Links
- PRODUCT DETAIL

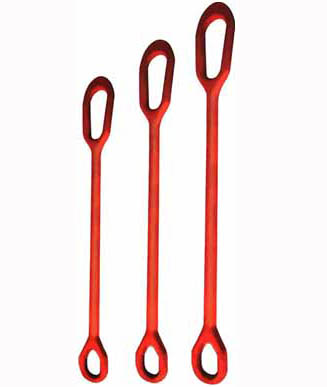

Weldless
links are forged from a single piece of high-quality alloy steel to provide
maximum tensile strength. More weight and “plus-diameter” in critical areas
make these links extra strong. Short upper eye design means better balance and
easier elevator handling, while reducing wear of the eye section against the
swivel bail or body. The Weldless Links are designed and manufactured according
to API SPEC 8A/8C Specification for drilling and production hoisting equipments.
Main Technical Parameters
|
Size-inches |
Size-mm |
Rated Cap/Set tons |
|
1-3/4X48 |
44x1219 |
150 |
|
1-3/4X60 |
44x1524 |
150 |
|
1-3/4X72 |
44x1829 |
150 |
|
1-3/4X84 |
44x2134 |
150 |
|
1-3/4X96 |
44x2438 |
150 |
|
2-1/4 x60 |
57x1524 |
250 |
|
2-1/4x72 |
57x1829 |
250 |
|
2-1/4x84 |
57x2134 |
250 |
|
2-1/4x96 |
57x2438 |
250 |
|
2-1/4x108 |
57x2743 |
250 |
|
2-1/4x132 |
57x3353 |
250 |
|
2-1/4x168 |
57x4267 |
250 |
|
2-1/4X240 |
57x6096 |
250 |
|
2-1/4X360 |
57x9144 |
250 |
|
2-1/4X480 |
57x12192 |
250 |
|
2-3/4x60 |
70x1524 |
350 |
|
2-3/4x72 |
70x1829 |
350 |
|
2-3/4x84 |
70x2134 |
350 |
|
2-3/4x96 |
70x2438 |
350 |
|
2-3/4x108 |
70x2743 |
350 |
|
2-3/4x120 |
70x3048 |
350 |
|
2-3/4x132 |
70x3353 |
350 |
|
2-3/4x144 |
70x3688 |
350 |
|
2-3/4x150 |
70x3810 |
350 |
|
2-3/4x168 |
70x4267 |
350 |
|
2-3/4x180 |
70x4572 |
350 |
|
2-3/4x192 |
70x4876 |
350 |
|
2-3/4x216 |
70x5486 |
350 |
|
2-3/4x240 |
70x6096 |
350 |
|
2-3/4x290 |
70x7366 |
350 |
|
2-3/4X300 |
70x7620 |
350 |
|
2-3/4x360 |
70x9144 |
350 |
|
2-3/4x480 |
70x12192 |
350 |
|
2-3/4X540 |
70x13716 |
350 |
|
2-3/4X600 |
70x15240 |
350 |
|
3-1/2x72 |
89x1829 |
500 |
|
3-1/2x96 |
89x2438 |
500 |
|
3-1/2x108 |
89x2743 |
500 |
|
3-1/2x120 |
89x3048 |
500 |
|
3-1/2x132 |
89x3353 |
500 |
|
3-1/2x144 |
89x3688 |
500 |
|
3-1/2x160 |
89x4064 |
500 |
|
3-1/2x168 |
89x4267 |
500 |
|
3-1/2x180 |
89x4572 |
500 |
|
3-1/2x192 |
89x4826 |
500 |
|
3-1/2x216 |
89x5486 |
500 |
|
3-1/2x240 |
89x6096 |
500 |
|
3-1/2x264 |
89x6706 |
500 |
|
3-1/2x360 |
89x9144 |
500 |
|
3-1/2x480 |
89x12192 |
500 |
|
3-1/2x540 |
89x13716 |
500 |
|
3-1/2x600 |
89x15240 |
500 |
|
3-1/2x720 |
89x18288 |
500 |
|
4-3/4x108 |
121x2743 |
750 |
|
4-3/4x132 |
121x3353 |
750 |
|
4-3/4x144 |
121x3688 |
750 |
|
4-3/4x160 |
121x4064 |
750 |
|
4-3/4x180 |
121x4572 |
750 |
|
4-3/4x216 |
121x5486 |
750 |
|
4-3/4x240 |
121x6096 |
750 |
|
4-3/4x264 |
121x6706 |
750 |
|
5-1/2x180 |
1407x4572 |
1000 |
|
5-1/2x240 |
1407x6096 |
1000 |
|
5-1/2x264 |
1407x6706 |
1000 |
|
Note: All other non-standard lengths are available upon requests. |
||
