HYDRAULIC POWER UNIT
- PRODUCT DETAIL
YZB
/ YZC series of hydraulic power units are used to supply hydraulic power for
onshore and offshore drilling operations. This kind of product has the
advantages of wide adjustment range, easy operation, and high generality.
Series of air/water cooled hydraulic
power units are especially suitable for desert and continuous working
situation. The product features compact structure, easy operation, wide

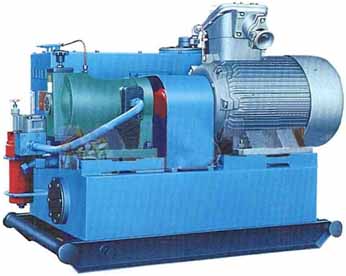

adjustable range, good heating or radiating, etc. YZB stands for Electric Motor

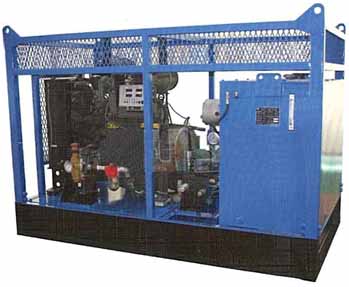

driven. YZC stands for diesel engine driven. F stands for Fan Cooling. Symbol
of Water cooling is neglected.
Main Technical Parameters
|
Model |
YZB-120II |
YZBF-120II-2 |
YZBF-120LD |
YZBF-120LD/2-4 |
|
Rated Flow rate gpm |
31.7 |
31.7 |
31.7 |
30 |
|
Rated Pressure psi |
2400 |
2320 |
2400 |
2900 |
|
Max. Pressure psi |
3120 |
2900 |
3120/2030 |
3120 |
|
Effective Capacity gal |
155 |
155 |
158.5 |
238 |
|
Drive Power hp |
49.6 |
49.6 |
49.6 |
60.3x2 |
|
Heating Power hp |
/ |
4x2 |
4x2 |
4x2 |
|
Fan Motor Power hp |
/ |
1 |
0.5x2 |
0.5x2 |
|
Radiation area ft2 |
/ |
344 |
430.6 |
430.6 |
|
Ovl Dim. in |
61x42x45 |
68x51x50 |
65x51x65 |
76.7x63x69 |
|
Weight lbs |
2866 |
3307 |
3960 |
6062 |
|
Model |
YZBF-120LD/2-5III |
YZBS-120 |
YZBS-120LD-2 |
|
Rated Flow rate gpm |
31.7 |
31.7 |
31.7 |
|
Rated Pressure psi |
2400 |
2400 |
2320 |
|
Max. Pressure psi |
2900 |
2900 |
2900 |
|
Effective Capacity gal |
238 |
238 |
238 |
|
Drive Power hp |
60.3x2 |
49.6 |
49.6 |
|
Heating Power hp |
4x2 |
4x2 |
4x2 |
|
Fan Motor Power hp |
0.5x2 |
/ |
/ |
|
Radiation area ft2 |
430.6 |
64.6 Water Cooling |
107.6 Water Cooling |
|
Ovl Dim. in |
76.7x63x69 |
61x48.4x44.5 |
69x53x69 |
|
Weight lbs |
6062 |
3086 |
5290 |
