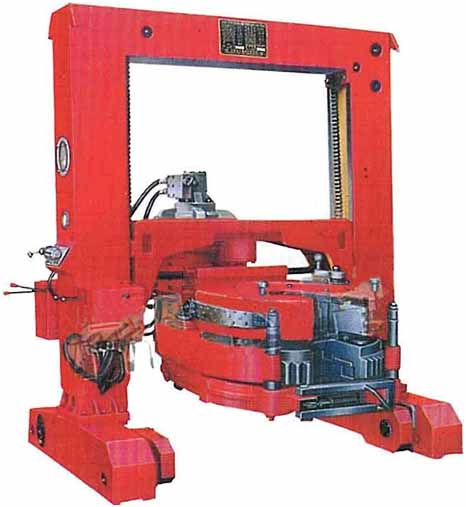

ZQ Series Drill Pipe Tong
- PRODUCT DETAIL
ZQ
drill pipe power tong is ideal tool for oil & gas drilling, widely applied
for makeup and breakout in offshore and onshore drilling operations and
workover operations. Open head design of the ZQ series allows the tongs to
disengage from drill string with high mobility. The tong is a combination of
spinning tong and torque tong. The tongs are designed and manufactured
according to API SPEC 7K “Specification for Drilling Equipments”.
Main Technical Parameters
|
Model |
ZQ127-25 |
ZQ162-50 |
ZQ203-100 |
ZQ203-125 |
ZQ127-25II |
|
|
Pipe Size in |
Drill Pipe |
2-3/8~3-1/2 |
2-3/8~5 |
3-1/2~8 |
3-1/2~8 |
2-3/8~3-1/2 |
|
Casing |
2-3/8~3-1/2 |
4-1/2~5-1/2 |
/ |
/ |
3-1/2 |
|
|
Tubing |
2-3/8~3-1/2 |
3-1/2~4-1/2 |
|
|
3-1/2 |
|
|
Max. Torque ft.lbs |
18440 |
36880 |
73750 |
92200 |
18440 |
|
|
Speed rpm |
High Gear |
65 |
60 |
40 |
40 |
65 |
|
Low Gear |
10.5 |
4.1 |
2.7 |
2.7 |
10.5 |
|
|
Air Pressure psi |
72~130 |
|||||
|
Pressure Rating psi |
1740 |
2030 |
2400 |
3000 |
2030 |
|
|
Flow Rating gpm |
31.7 |
31.7 |
30 |
30 |
31.7 |
|
|
Shifting distance |
39.4 |
39.4 |
59 |
59 |
39.4 |
|
|
Travel Distance in |
/ |
/ |
/ |
/ |
/ |
|
|
Lifting Distance |
/ |
/ |
/ |
/ |
0~24.4 |
|
|
Overall Dimension in |
44x31x32 |
62x31x32 |
69x39x32 |
69x40.5x53 |
40x31x35.4 |
|
|
Weight lbs |
1360 |
3310 |
5290 |
5840 |
1540 |
|
|
Model |
ZQ162-50II |
ZQ203-100II |
ZQ203-125II |
ZQ203-100III |
ZQ203-125III |
|
|
Pipe Size in |
Drill Pipe |
2-3/8~8 |
3-1/2~8 |
3-1/2~8 |
3-1/2~8 |
3-1/2~8 |
|
Casing |
4-1/2~5-1/2 |
/ |
/ |
/ |
/ |
|
|
Tubing |
3-1/2~4-1/2 |
/ |
/ |
/ |
/ |
|
|
Max. Torque ft.lbs |
36880 |
73750 |
92200 |
73750 |
92200 |
|
|
Speed rpm |
High Gear |
60 |
40 |
40 |
40 |
40 |
|
Low Gear |
4.1 |
2.7 |
2.7 |
2.7 |
2.7 |
|
|
Air Pressure psi |
72~130 |
|||||
|
Pressure Rating psi |
2320 |
2400 |
3000 |
2400 |
3000 |
|
|
Flow Rating gpm |
31.7 |
30 |
30 |
30 |
30 |
|
|
Shifting distance |
39.4 |
59 |
59 |
/ |
/ |
|
|
Travel Distance in |
/ |
/ |
/ |
0~118 |
0~118 |
|
|
Lifting Distance |
0~17.3 |
0~17 |
0~17 |
0~31.5 |
0~31.5 |
|
|
Overall Dimension in |
62x31x54 |
69x39x64 |
69x42.5x64 |
69x71.7x81 |
69x71.7x81 |
|
|
Weight lbs |
3748 |
5510 |
6063 |
7165 |
8100 |
|
