Pneumatic Slip
- PRODUCT DETAIL
PS Series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipment.
Main Technical Parameters
|
Model |
Rotary Table Size in |
Applicable Dia. of Tubular |
Rated Capacity (short tons) |
WP PSI |
Max. Pressure PSI |
|

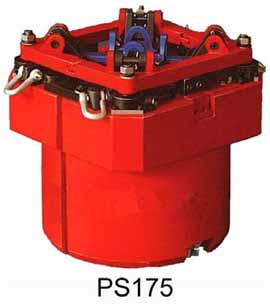

PS175 |
17-1/2 |
2-3/8”~5-3/4” |
150 |
85~114 |
142 |
|
PS205 |
20-1/2 |
2-3/8”~5-3/4” |
250 |
85~114 |
142 |
|
PS275 |
27-1/2 |
2-3/8”~9-7/8” |
350 |
85~114 |
142 |
|

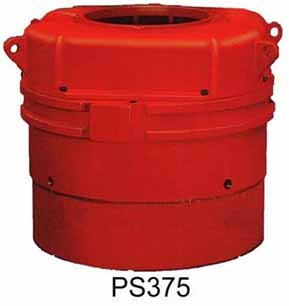

PS375 |
37-1/2 |
2-3/8”~14” |
500 |
85~114 |
142 |
|

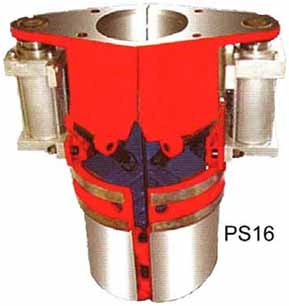

PS16 |
27-1/2, 37-1/2, 49-1/2 |
3-1/2”~7-3/4” |
500 |
85~114 |
142 |
|
PS Portable |
23, 27-1/2, 37-1/2, 49-1/2 Pin Drive |
2-3/8”~5-1/2” |
250 |
85~114 |
142 |
|
350 |
|||||
|
PS Slant Hole |
For Slant Hole Drilling Rig |
2-7/8”~13-3/8” |
250 |
85~114 |
142 |
|
PS560 |
560mm Through Hole |
1.9”~7” |
350 |
85~114 |
142 |
