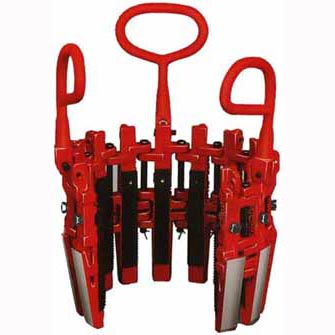

Drill Collar Slips Type WT can accommodate drill collars from 4-1/2” to 9-1/2” OD. They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipments.
Main Technical Parameters
Model |
WT4-1/2~6 |
WT5-1/2~7 |
WT6-3/4~8-1/4 |
WT8~9-1/2 |
DC OD in |
4-1/2”~6” |
5-1/2”~7” |
6-3/4”~8-1/4” |
8”~9-1/2” |
Use in Insert Bowl No. |
API or No. 3 |
|||
Max. Load |
40 short tons |
