TQ Series Hydraulic Casing Tong
- PRODUCT DETAIL
TQ

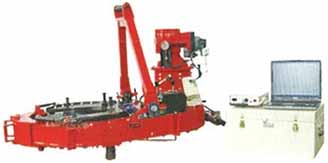

series of casing tongs are widely used for makeup and breakout of casings or
other pipes. The casing tong features high-efficiency, safety, reliability,
labor saving, and ensures connection quality. Tong head is designed as open
type and equipped with advanced swing-type double jaw assembly, which can
secure reliable clamping. This series of casing tongs can be configured with
torque device to perform computer monitoring and managing on pressure, torque
and rounds. The tongs are designed and manufactured according to API SPEC 7K
“Specification for Drilling Equipments”.
Main Technical Parameters
|
Model |
TQ178-16 |
TQ178-16Y |
TQ340-35 |
TQ340-35Y |
|
|
Pipe Size in |
4~7 |
4~7 |
4-1/2~13-3/8 |
4-1/2~13-3/8 |
|
|
Max. Pressure psi |
2610 |
2320 |
2610 |
2900 |
|
|
Flow Rate gpm |
29.3~42.7 |
29.3~42.7 |
29.3~42.7 |
29.3~45.4 |
|
|
Air Pressure psi |
72~130 |
-- |
72~130 |
-- |
|
|
Max. Torque ft.lbs |
High Gear |
1770~2210 |
1770~2210 |
1844~2210 |
2580~4450 |
|
Mid. Gear |
-- |
-- |
4425~5530 |
-- |
|
|
Low Gear |
10694~12900 |
11060~13270 |
23600~29500 |
16225~27285 |
|
|
Speed rpm |
High Gear |
54~79 |
50~72 |
60~86 |
50~90 |
|
Mid. Gear |
-- |
-- |
21~30 |
-- |
|
|
Low Gear |
9~13.1 |
9~13 |
3.6~5.3 |
8~14 |
|
|
Lifting Distance in |
-- |
-- |
-- |
24.2 |
|
|
OVL DIM. in |
57x30x29.1 |
59x30x34.6 |
62x35.4x41.7 |
62.2x35.4x34.6 |
|
|
Weight LBS |
1280 |
1230 |
1720 |
1670 |
|
|
Model |
TQ178-16 |
TQ178-16Y |
TQ340-35 |
TQ340-35Y |
|
|
Pipe Size in |
4~7 |
4~7 |
4-1/2~13-3/8 |
4-1/2~13-3/8 |
|
|
Max. Pressure psi |
2610 |
2320 |
2610 |
2900 |
|
|
Flow Rate gpm |
29.3~42.7 |
29.3~42.7 |
29.3~42.7 |
29.3~45.4 |
|
|
Air Pressure psi |
72~130 |
-- |
72~130 |
-- |
|
|
Max. Torque ft.lbs |
High Gear |
1770~2210 |
1770~2210 |
1844~2210 |
2580~4450 |
|
Mid. Gear |
-- |
-- |
4425~5530 |
-- |
|
|
Low Gear |
10694~12900 |
11060~13270 |
23600~29500 |
16225~27285 |
|
|
Speed rpm |
High Gear |
54~79 |
50~72 |
60~86 |
50~90 |
|
Mid. Gear |
-- |
-- |
21~30 |
-- |
|
|
Low Gear |
9~13.1 |
9~13 |
3.6~5.3 |
8~14 |
|
|
Lifting Distance in |
-- |
-- |
-- |
24.2 |
|
|
OVL DIM. in |
57x30x29.1 |
59x30x34.6 |
62x35.4x41.7 |
62.2x35.4x34.6 |
|
|
Weight LBS |
1280 |
1230 |
1720 |
1670 |
|
