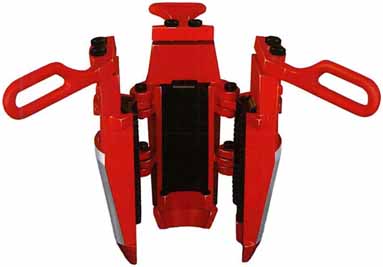

W Type Flake Rotary Slip
- PRODUCT DETAIL
Flake
Rotary Slips have three segments. They can handle various OD drill pipes, drill
collars and casing by changing inserts or insert bowls. There are two types of
such slips: W3-1/2”-5/100 and W5”-7/100. The products are designed and
manufactured according to API SPEC 7K Specification for drilling and well
servicing equipments.
Main Technical Parameters
|
Model |
Size of Tubular in |
Max. Load (kN) |
|
W3-1/2”-5/100 |
2-7/8 |
1000 |
|
3-1/2 |
||
|
4 |
||
|
4-1/8 |
||
|
4-1/2 |
||
|
4-3/4 |
||
|
5 |
||
|
W5”-7/100 |
5 |
|
|
5-1/2 |
||
|
5-9/16 |
||
|
5-3/4 |
||
|
6-1/8 |
||
|
6-1/4 |
||
|
6-1/2 |
||
|
6-5/8 |
||
|
7 |
